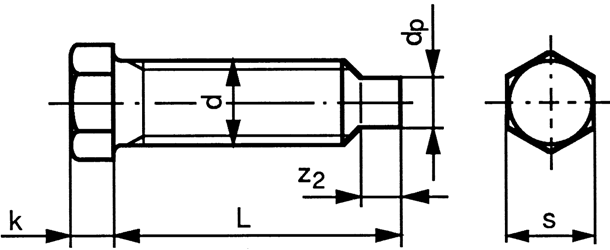

Hexagon head set screw with small hexagon and dog point

DIN 561
NF E25-133
Technical Parameter

d

M6

M8

M10

M12

M16

P

1

1,25

1,5

1,75

2

k

5

6

7

9

11

s

8

10

13

16

18

dp (max.)

4

5,5

7

8,5

12

z2 (min.)

3

4

5

6

8

Product Category


Thread                        Driving features          Material              Class           Packaging        Code

M                                      hexagon                        St                        8.8            Standard          01098
