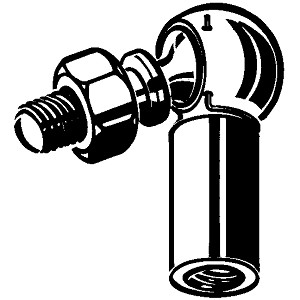

Ball joint

DIN 71802AS

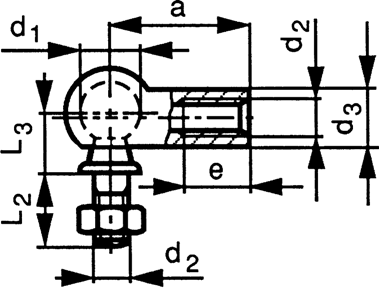

Technical Parameter

d2

M5

M6

M8

M10

M12 (#DIN)

M14

M16 (≠DIN)

P

0,8

1

1,25

1,5

1,75

1,5

2

d1

8

10

13

16

16

19

19

d3

8

10

13

16

16

22

22

a

22

25

30

35

35

45

45

e (min.)

10,2

11,5

14

15,5

15,5

21,5

21,5

L2

10,2

12,5

16,5

20

20

28

28

L3

9

11

13

16

16

20

20

Static load in kN

0,3

0,7

1,5

2

2

3

3

Product Category

Thread

Material

Surface treatment

Packaging

Code

Page

M

St

Zipl

right

Standard

57425

12-32

MF

St

Zipl

right

Standard

57426

12-32

M

St

Zipl

left hand

Standard

57475

12-32

MF

St

Zipl

left hand

Standard

57476

12-33
